7357-K890 NCR 7895 Scanner/Scale Upgrade
The NCR 7895 Scanner/Scale is a data capture solution that reads 1D, 2D, Digimarc, and mobile bar codes in all orientations. Bar code data is transmitted to a Point-of-Sale (POS) host through USB, RS‑232, or RS‑485 connection. For more information, refer to the NCR 7895 Scanner/Scale User Documentation (BCC5-0000-5511).
This publication provides procedures for upgrading an NCR FastLane SelfServ™ Checkout (7357) R6LN Plus unit—that is configured with either an NCR RealScan 79e (7879) Scanner/Scale or an NCR RealScan Low Profile Bi-Optic Scanner/Scale (7874)—with an NCR 7895 Scanner/Scale.
Kit Contents
| Part Number | Description |
|---|---|
| 497-0532335 | 7357-K890 7895 Upgrade Kit for 7357 |
| 497-0529907 | 7357-K895 7895 Tower Shroud and Adapter Plate Kit |
| * 007-9714414 | Tie Strap Plain 5.60 LG |
| * 497-0529515 | Cable - USB+PWR 12 V to Modular RJ50 (2.13 m) with Flag Label |
| * 497-0529516 | Cable - Scanner Color Camera USB 3 Type C to Type A, (2 m) |
| * 497-9999619 | X/XR7, 15 in POS/Display Carton (no stand) 20+1/4 x 20+1/4 x 7+5/8 in |
| * 497-0423108 | Instructions Kit (Reference Sheet) |

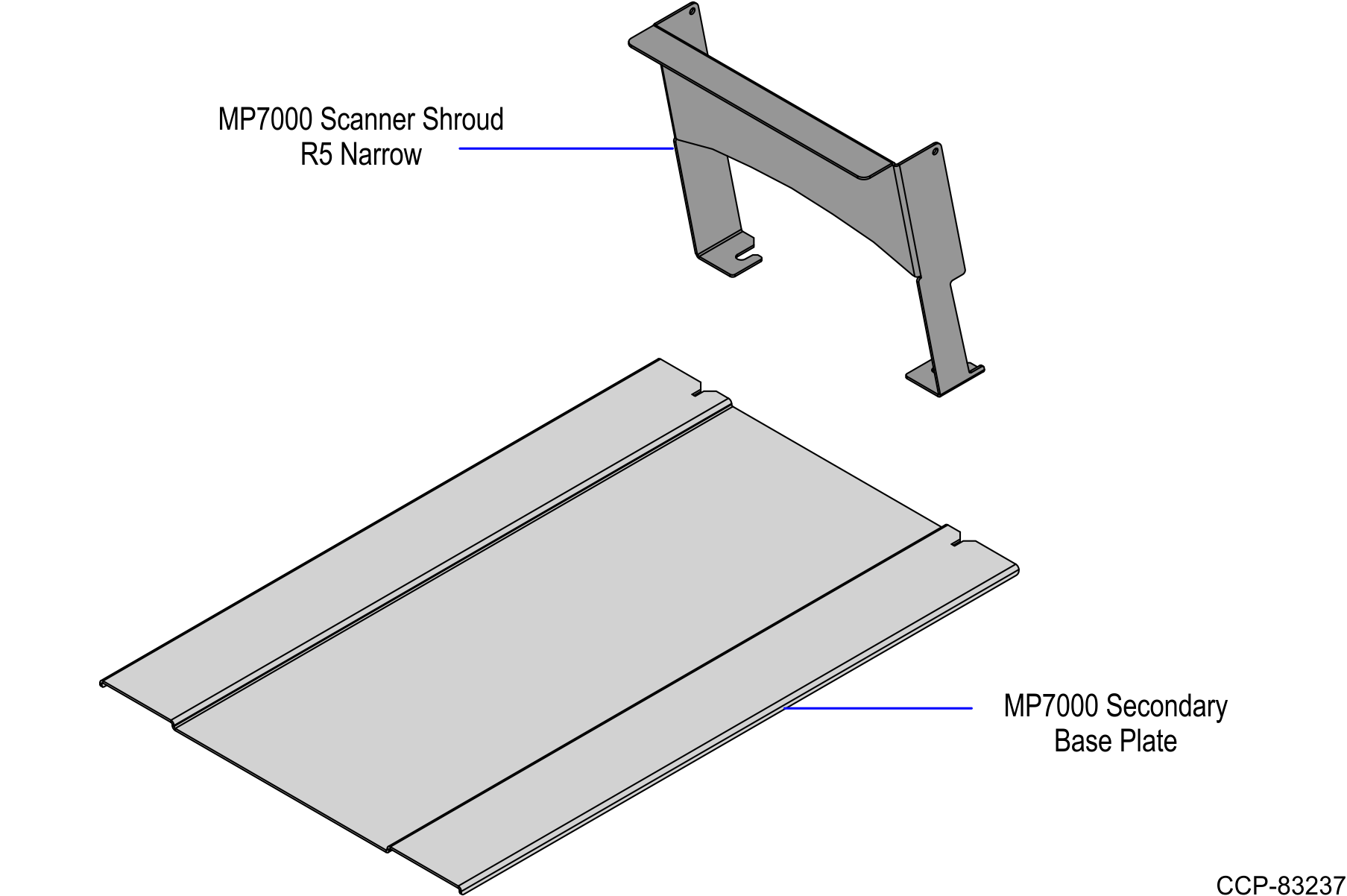

* Items marked with an asterisk are not called out on the image.
