2247-K040 Ceiling Mount Only

This publication provides procedures for installing the Ceiling Mount Kit to Complete Product Name.

! Important:  Install the Floor Mount Kit before installing the Ceiling Mount Kit. For more information on the Floor Mount Kit, refer to 2247 Floor Mount Kit (2247‑K042).

Floor to ceiling installation requires the kiosk to be bolted to the floor using four anchors and to the concrete slab ceiling using four anchors. It is the responsibility of the owning institution to provide the anchors to secure the kiosk.

If a False Ceiling is present, an access hole needs to be cut out on the False Ceiling to pass the Ceiling Posts towards the concrete slab.

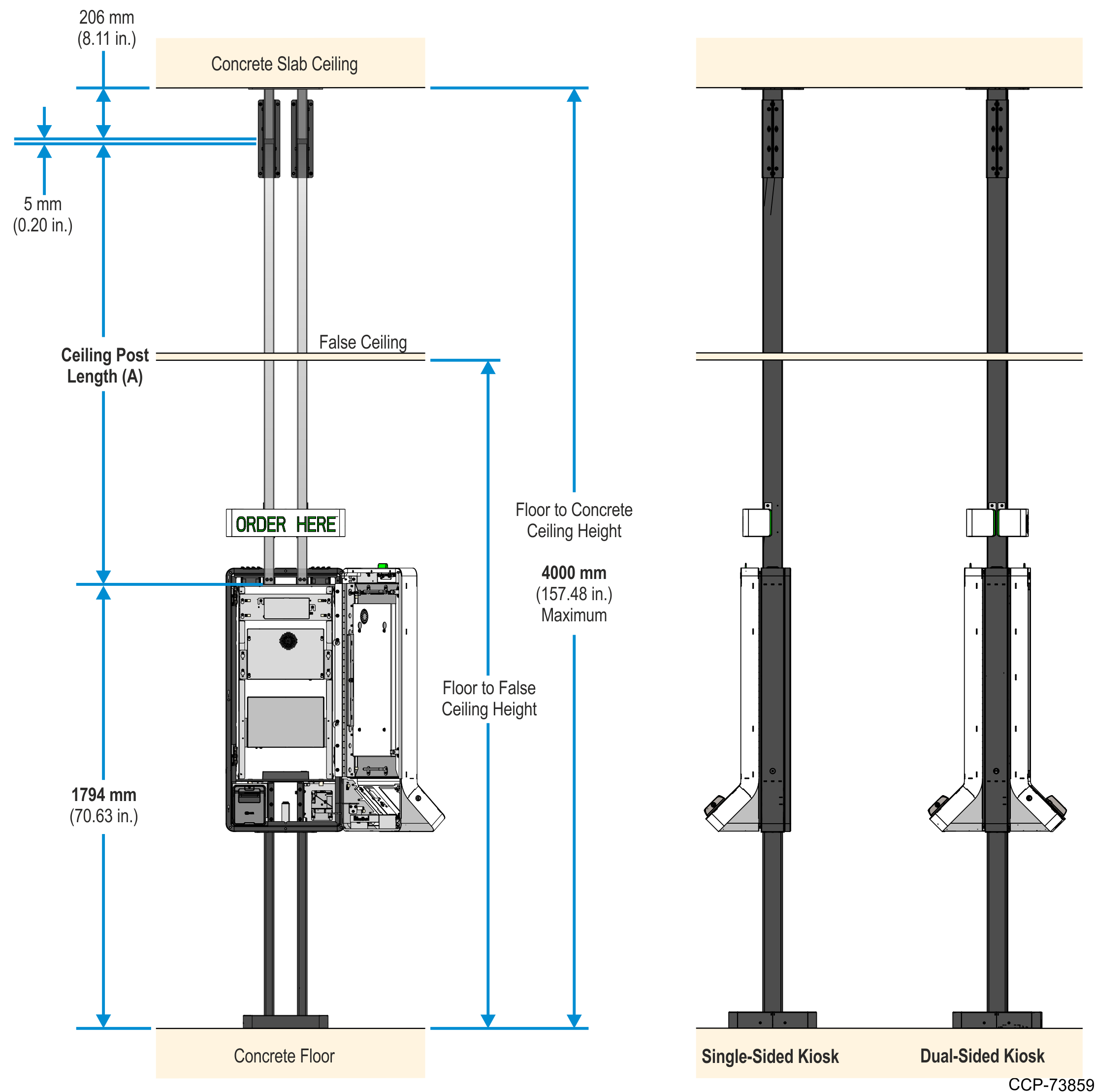

The Ceiling Posts need to be cut to length as appropriate for the Floor to Concrete Ceiling height of the installation site.

Maximum installation height is 4000 mm (157.48 in.).

For more details on Site Requirements and Site Preparation, refer to the "Floor to Ceiling Mounting Details" section of the NCR SelfServ XK32 (2245) Site Preparation (BCC5-0000-5245).
