Install the Power Supply Brackets

The two power supply brackets are installed at each side of the KC4 bracket.

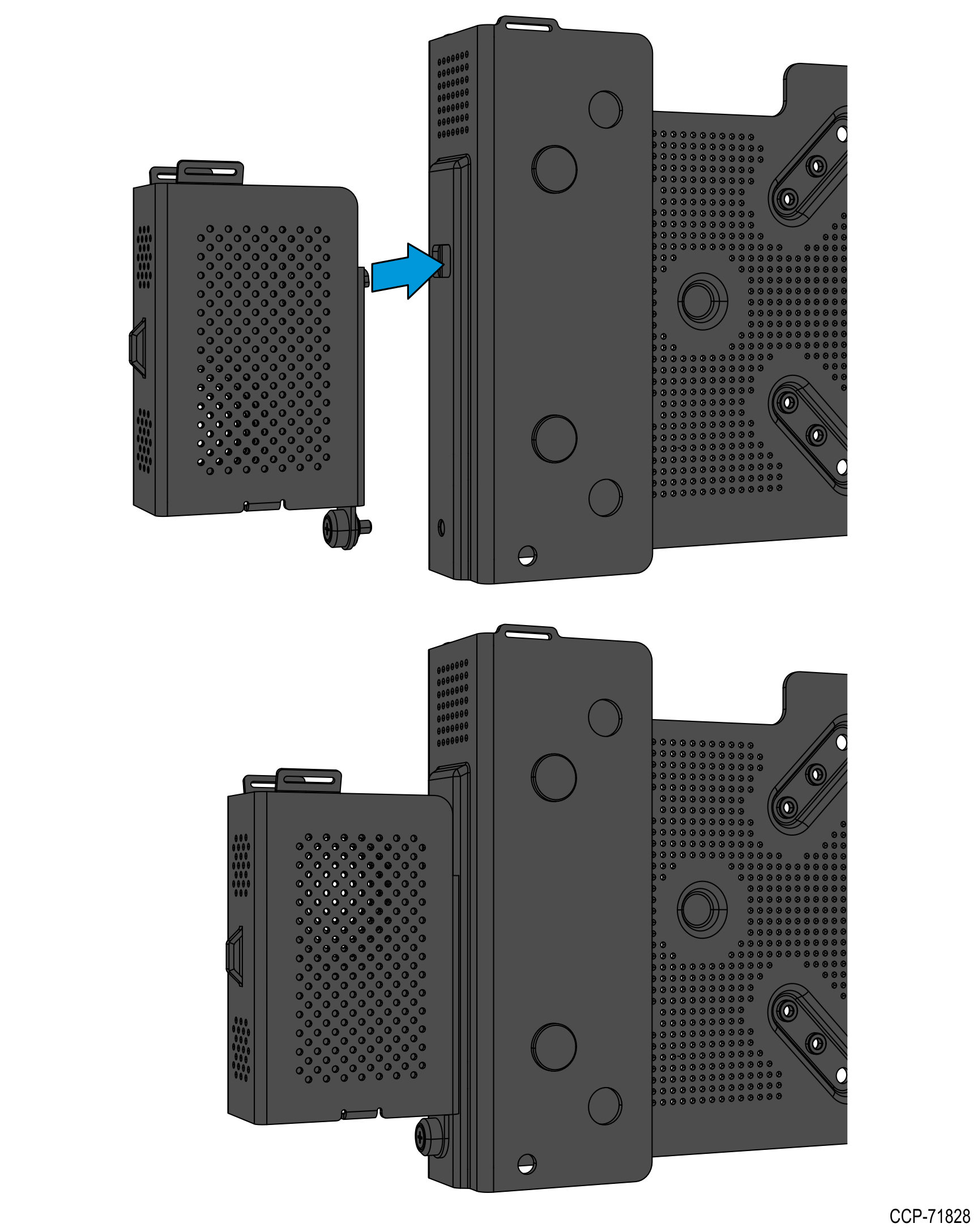

•To install the power supply bracket, insert its hook into the hole at the side of the KC4 bracket, and then tighten the thumb screw at the bottom.
