1607-K001 Bracket, Tabletop, 1607

This kit provides a Bracket to mount the NCR XL55P Payment Display (1607) on a tabletop.

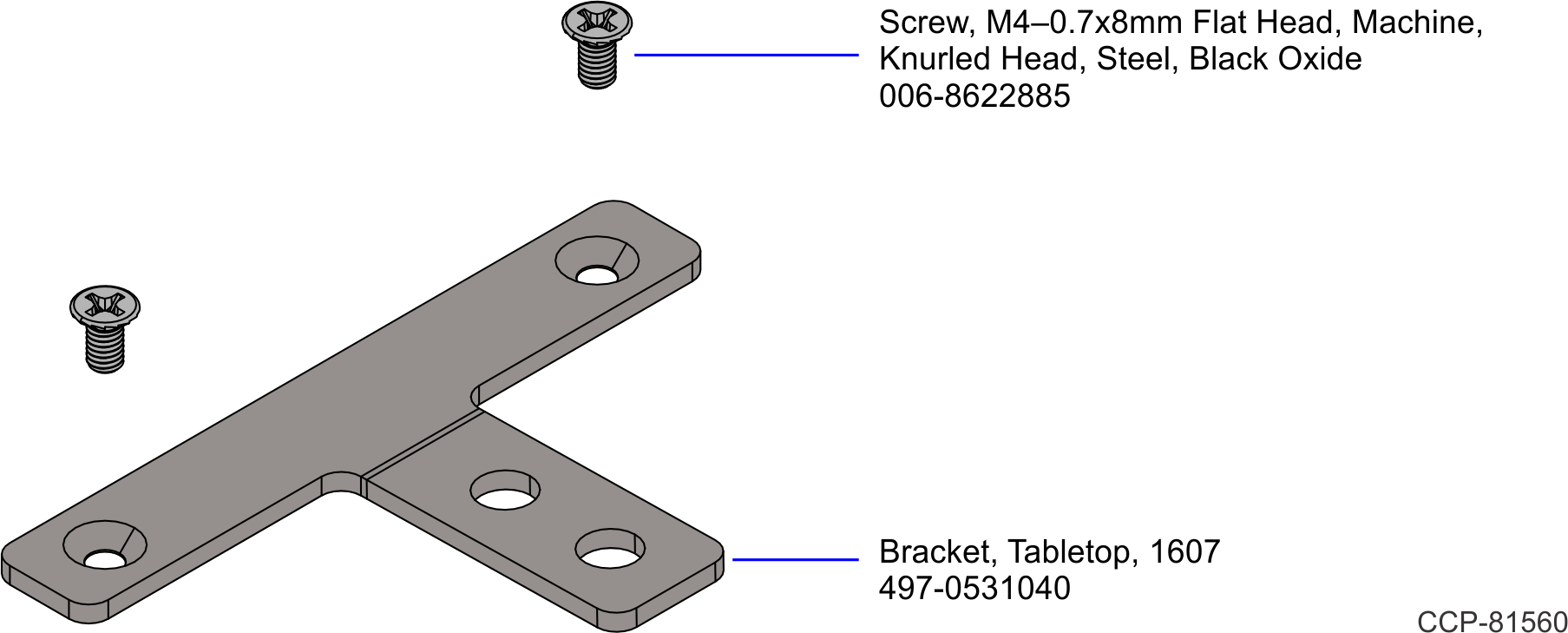

Kit Contents

Installation Procedure

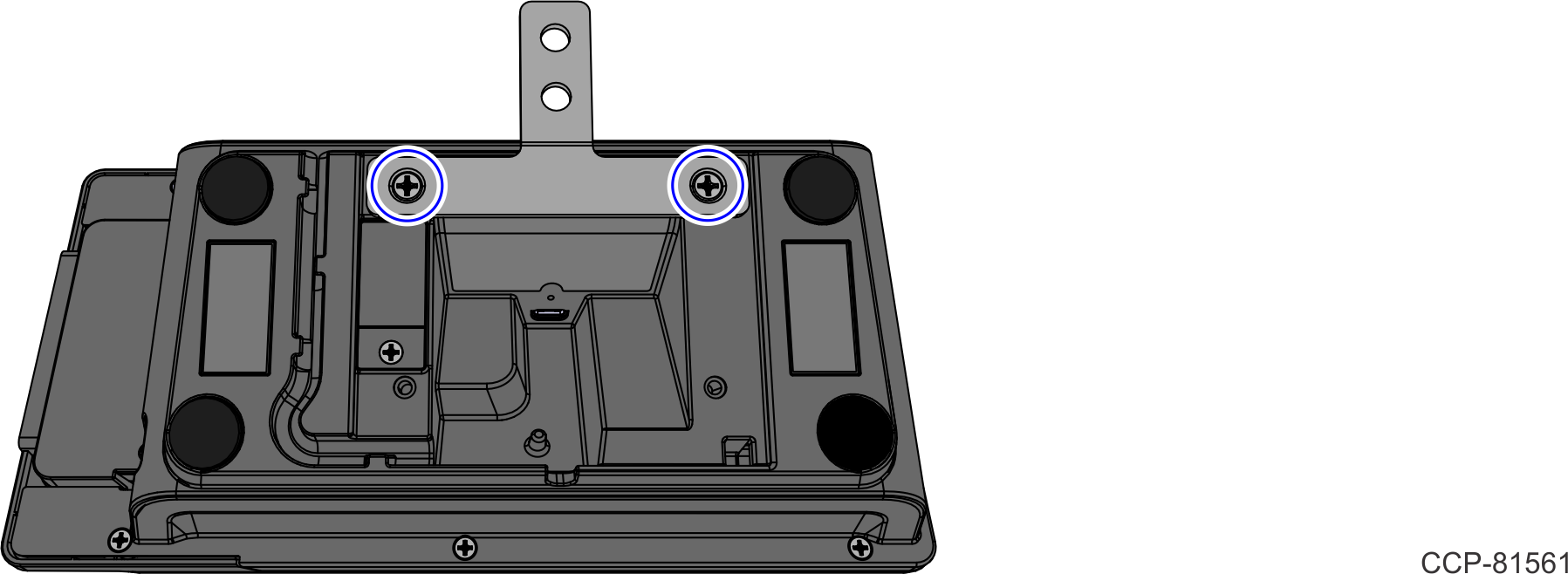

1. Install the Bracket on the bottom of the XL55P Payment Display using two (2) screws.

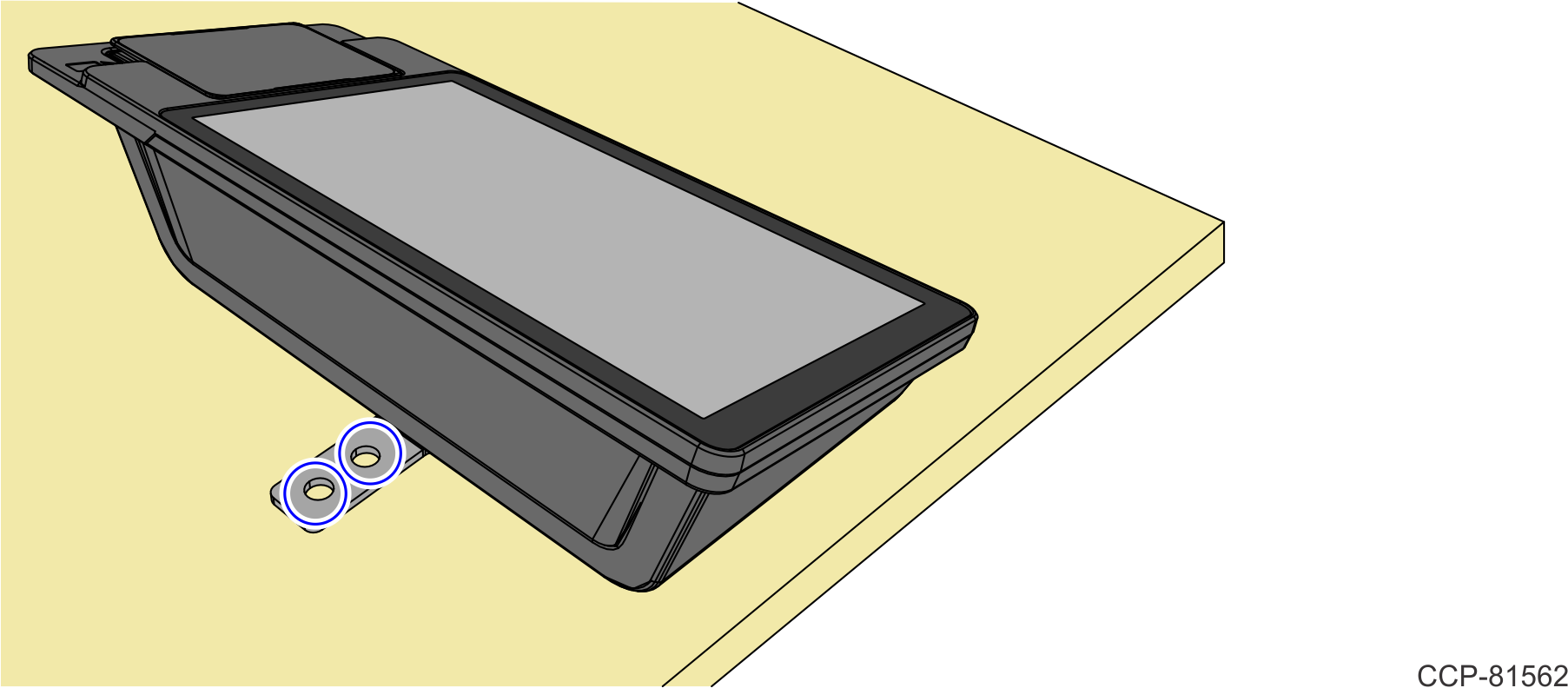

2. Install the Bracket on the tabletop using two (2) screws.
