Hardware Design and Components
Bump Bar
The Bump Bar is built with a rugged aluminum enclosure designed to function in a kitchen environment. Rubber end caps prevents debris from entering the unit and the connectors. To access the connectors, the end cap can be removed without using any tool.
The Bump Bar includes a speaker with adjustable volume to allow for alert beeps and key beeps to be heard in a noisy environment. Each key is programmable to predefined function list to provide the most flexible solution for each customer's operation. The Bump Bar also includes mounting brackets on both sides that allow it to be mounted to NCR Voyix brackets or other surfaces.
Mounting Options
NCR Voyix offers several options for mounting the KPS hardware with an LCD monitor. These options include counter, wall, and ceiling mounting. Customers can choose the mounting system that works best in their environment. None of the options are required for installation of a KPS system, though these options typically provide for a better installation. Please ask your NCR Voyix representative for more details.

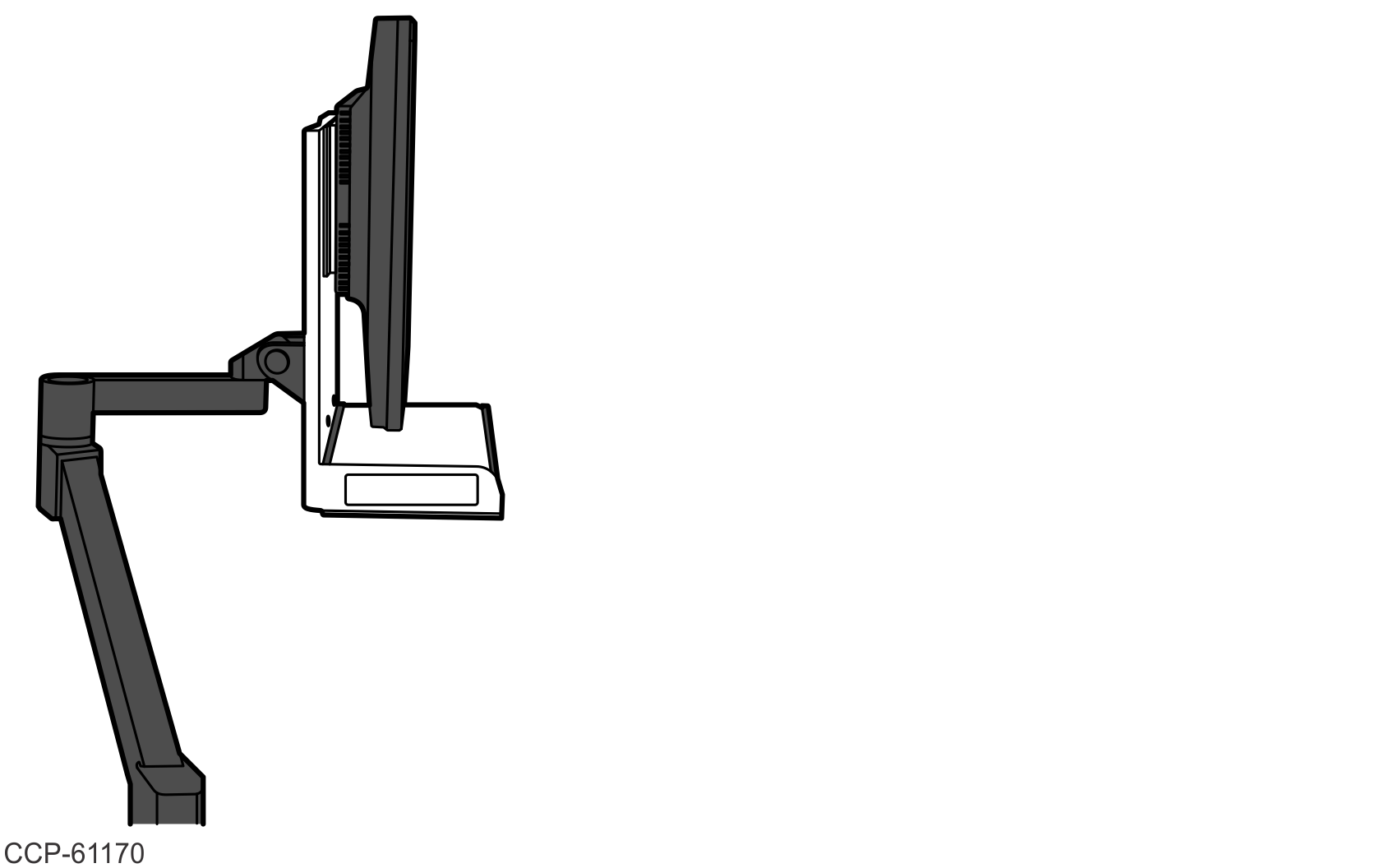

The image above is an example of a KPS solution with the optional Integration Bracket and Radial Arm.
Additional Kit Options
| Kit Number | Description |
|---|---|
| 1635–K007 | Bumpbar Membrane Kit |
| 1635–K008 | USB to Powered RJ12 Serial Adapter Kit |
| 1635–K013 | Bumpbar Board Kit (NXP uC) |
| 1635–K014 | Kit, USB Type A to Type B 12ft Cable |
| 1635–K015 | Dual USB/Serial Bumpbar Board Kit (NXP uC) |
| 1635–K900 | Kit, RJ12 to DB9 Serial adapter |
| 1635–K901 | Kit, Cable, 25ft, RJ12 to DB9 over molded |
