Using the Printer

Note:  For instructions on setting the DIP switches, refer to Setting Switches.

1.Connect the power supply cable to the printer and turn on the power source.

The printer goes through a self-test routine to ensure everything is working properly then beeps. When the printer completes its startup cycle, it is ready to receive data.

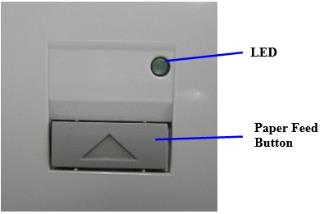

Note:   If the LED blinks, or the host computer indicates that there is a problem, refer to Solving Problems .

2.To obtain a Configuration print out, which notes the printer settings, open the receipt door. While pressing the Paper Feed button, close the receipt door. Release the Paper Feed button when the printing begins.

Note:   The printer receives power when the power supply is on, even if the printer is offline. To completely remove power, unplug the power supply from the outlet or turn the POS terminal off.
